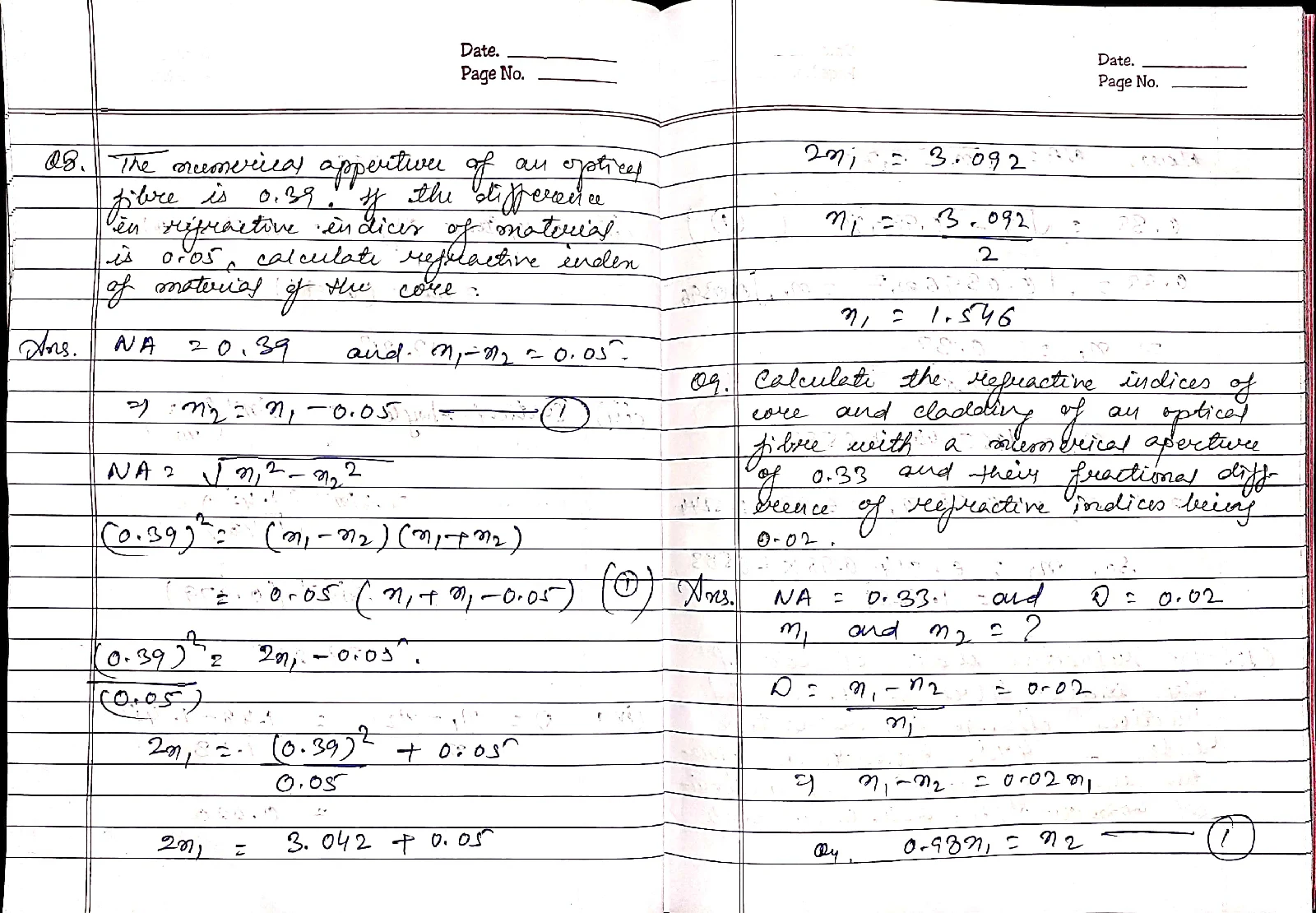

The numerical aparture of an optical fibre is 0.39. If the difference in the refractive indices of the material of its core and the cladding is 0.05, calculate the refractive index of material of the core.

Getting Info...

About the Author

"Meet Mr. Akhand Dutta, the visionary Founder and Owner of CEWA (Civil Engineering With Akhand Dutta). Currently, The Placement Coordinator for Structural Engineering at the prestigious National Institute of Technology, Kurukshetra. With a lif…

Civil Engineering With Akhand Dutta

The numerical aparture of an optical fibre is 0.39. If the difference in the refractive indices of the material of its core and the cladding is 0.05, calculate the refractive index of material of the core.
